1605580 | Phoenix Contact

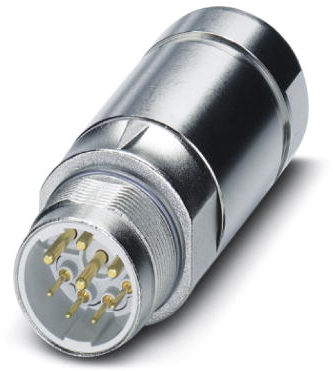

Plug, M23, 8 pole, crimp connection, SPEEDCON locking, straight, 1605580

Order No.: 62P4136
EAN: 4046356253680
MPN:
1605580
SF-7EP1N8A9LB2
Series: SF
1605580 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
62.8677 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
62.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
62.8677 €

Coupler connector, 1605580, Phoenix Contact

Coupler connector, straight long, for standard and SPEEDCON interlock, M23, number of positions: 4+3+PE, type of contact: Pin, cable diameter range: 12 mm - 15 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Pin number 8 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
