1605571 | Phoenix Contact

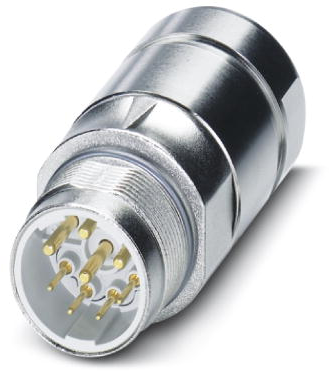

Plug, M23, 8 pole, crimp connection, SPEEDCON locking, straight, 1605571

Order No.: 62P4132
EAN: 4046356253666
MPN:
1605571
SF-7EP1N8A90A3
Series: SF
1605571 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
55.9895 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
55.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.9895 €

Coupler connector, 1605571, Phoenix Contact

Coupler connector, straight short, for standard and SPEEDCON interlock, M23, number of positions: 4+3+PE, type of contact: Pin, cable diameter range: 11 mm - 14 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type plug
Thread size M23
Type of locking SPEEDCON locking
Pin number 8 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
