1605567 | Phoenix Contact

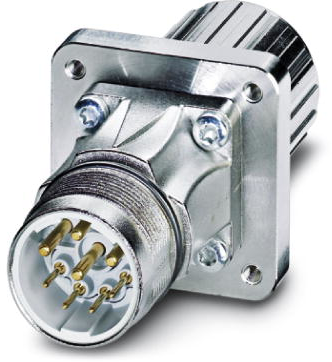

Socket, M23, 8 pole, crimp connection, screw locking, straight, 1605567
Unit Price (€ / pc.)
222.3039 € *
Standard delivery time from the manufacturer is: On Request
Sensor-actuator connector, 1605567, Phoenix Contact
Pin/socket, panel feed-through, straight, M23, M23, number of positions: 4+3+PE, type of contact: Socket, Axial O-ring, 4xM3, cable diameter range: 0 mm - 0 mm, number of positions: 8, connection method: Crimp connection.
Features
- Shielded
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For power applications
Technical specifications
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Product type | socket | |
| Coding | N | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M23 |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
