1605546 | Phoenix Contact

Socket, M23, 6 pole, crimp connection, screw locking, straight, 1605546

Order No.: 62P4114
EAN: 4046356253543
MPN:
1605546
SF-5ES1N8A8LB3
Series: SF
1605546 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
51.0391 € *
Available in 10 days: 971 pcs. - if ordered today
Total Price:
51.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.0391 €

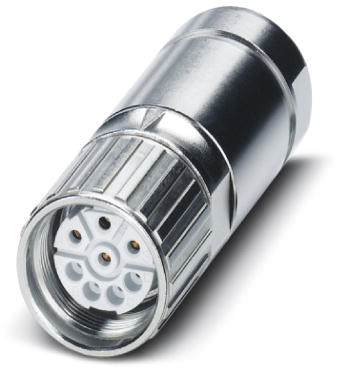

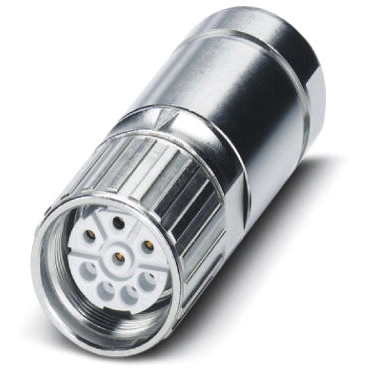

Sensor-actuator connector, 1605546, Phoenix Contact

Cable connector, straight long, Screw locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 9 mm - 12 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Orientation straight
Degree of protection (IP) IP67
Product type socket
Type of locking screw locking
Pin number 6 pole
Thread size M23
Coding N
Contact connection crimp connection
Assembly cable assembly
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
