1605545 | Phoenix Contact

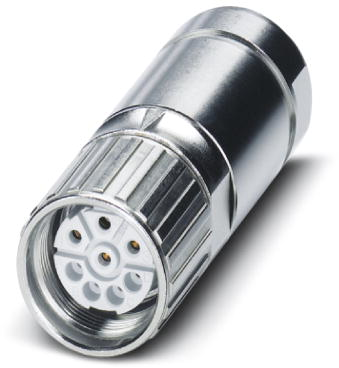

Jack, M23, 6 pole, crimp connection, screw locking, straight, 1605545

Order No.: 62P4112
EAN: 4046356253536
MPN:
1605545
SF-5ES1N8A8LB2
Series: SF
1605545 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
51.0391 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
51.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.0391 €

Sensor-actuator connector, 1605545, Phoenix Contact

Cable connector, straight long, Screw locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 12 mm - 15 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Orientation straight
Assembly cable assembly
Pin number 6 pole
Contact connection crimp connection
Product type jack
Degree of protection (IP) IP67
Type of locking screw locking
Coding N
Thread size M23
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
