1605532 | Phoenix Contact

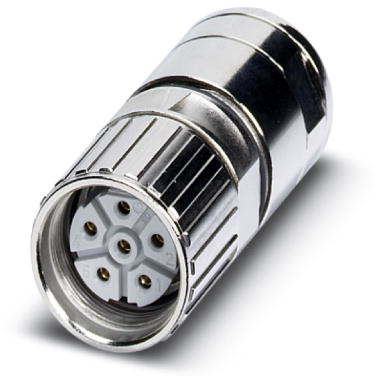

Jack, M23, 6 pole, crimp connection, screw locking, straight, 1605532

Order No.: 62P4108
EAN: 4046356182171
MPN:
1605532
SF-5ES1N8A80DU
Series: SF
1605532 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
38.7821 € *
Available in 10 days: 176 pcs. - if ordered today
Total Price:
38.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.7821 €

Sensor-actuator connector, 1605532, Phoenix Contact

Cable connector, straight short, Screw locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 7.5 mm - 14 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Thread size M23
Assembly cable assembly
Degree of protection (IP) IP67
Coding N
Type of locking screw locking
Orientation straight
Product type jack
Pin number 6 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
