1605519 | Phoenix Contact

Plug, M23, 6 pole, crimp connection, screw locking, straight, 1605519

Order No.: 62P4095
EAN: 4046356253376
MPN:
1605519
SF-5EP1N8AF4DU
Series: SF
1605519 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
55.5849 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,111.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
55.5849 €

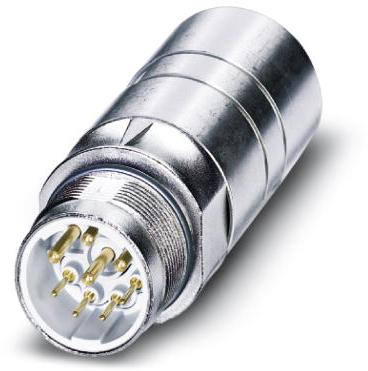

Coupler connector, 1605519, Phoenix Contact

Coupler connector, straight, Screw locking, M23, number of positions: 5+PE, type of contact: Pin, cable diameter range: 7.5 mm - 14 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM
Technical specifications
Filter Property Value
Pin number 6 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
