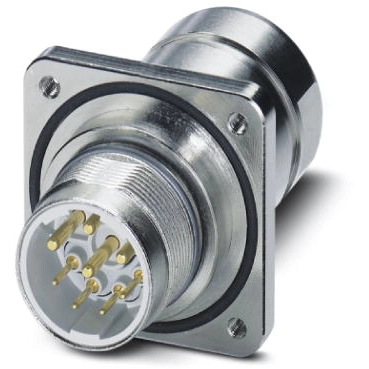

1605517 | Phoenix Contact

Plug, M23, 6 pole, crimp connection, screw locking, straight, 1605517

Order No.: 62P4089
EAN: 4046356253314
MPN:
1605517
SF-5EP1N8AC0DU
Series: SF
1605517 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
142.7762 € *
Available in 10 days: 32 pcs. - if ordered today
Total Price:
142.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
142.7762 €

Sensor-actuator connector, 1605517, Phoenix Contact

Rear panel feed-through, straight, Screw locking, M23, number of positions: 5+PE, type of contact: Pin, Axial O-ring, 4xM3, cable diameter range: 7.5 mm - 14 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM
Technical specifications
Filter Property Value
Pin number 6 pole
Contact connection crimp connection
Assembly cable assembly
Product type plug
Coding N
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
