1605498 | Phoenix Contact
Plug, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1605498
Unit Price (€ / pc.)
54.74 € *
Standard delivery time from the manufacturer is: 5 Weeks

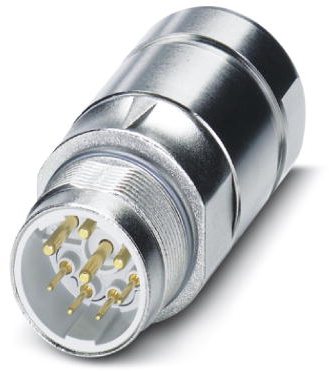

Coupler connector, 1605498, Phoenix Contact
Coupler connector, straight short, for standard and SPEEDCON interlock, M23, number of positions: 5+PE, type of contact: Pin, cable diameter range: 11 mm - 14 mm, number of positions: 6, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Contact connection | crimp connection | |
| Type of locking | SPEEDCON locking | |
| Product type | plug | |
| Thread size | M23 | |
| Assembly | cable assembly | |
| Coding | N | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
