1559631 | Phoenix Contact

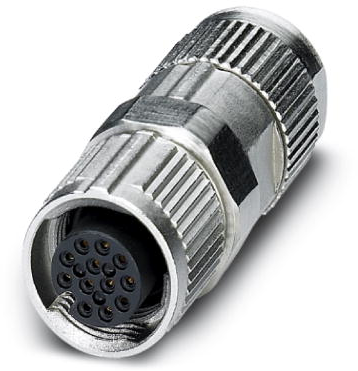

Jack, M12, 12 pole, SPEEDCON locking, straight, 1559631
Unit Price (€ / pc.)
65.4857 € *
Available in 10 days: 72 pcs. - if ordered today
Sensor-actuator connector, 1559631, Phoenix Contact
Connector, Universal, 12-position, Socket straight M12 SPEEDCON, Piercecon fast connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5.4 mm - 8.2 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Fast locking system
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Thread size | M12 | |
| Coding | A | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| Type of locking | SPEEDCON locking | |
| contact surface | nickel-plated/gold-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
