1557581 | Phoenix Contact
Plug, M12, 8 pole, solder connection, push-in, straight, 1557581
Unit Price (€ / pc.)
7.9016 € *
Available in 5 Days: 660 pcs. - if ordered today

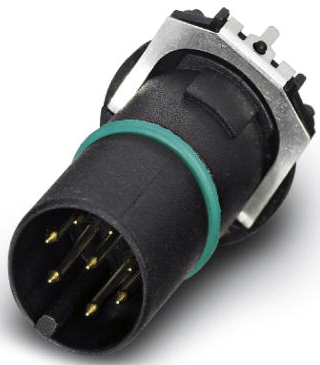

Sensor-actuator connector, 1557581, Phoenix Contact
Sensor/actuator flush-type plug, 8-pole, shielded, with straight THR solder connection.
Features
- Easy device integration
- Two-piece device connector
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Pin number | 8 pole | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Type of locking | push-in | |
| Product type | plug | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
