1554568 | Phoenix Contact
Panel plug, M12, 5 pole, strand connection, straight, 1554568
Unit Price (€ / pc.)
40.8408 € *
Standard delivery time from the manufacturer is: 4 Weeks

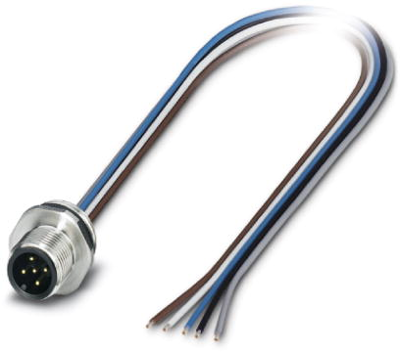

Sensor-actuator connector, 1554568, Phoenix Contact
Sensor/actuator flush-type plug, 5-pole, M12, front/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| Product type | panel plug | |
| Orientation | straight | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Coding | A | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K | |
| Version | cable 0.5 m | |
| Assembly | front mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
