1554539 | Phoenix Contact

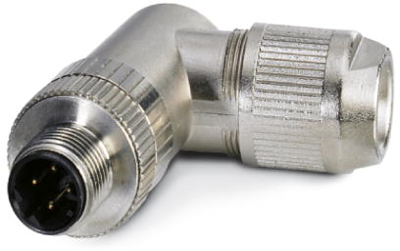

Plug, M12, 4 pole, IDC connection, screw locking, angled, 1554539
Unit Price (€ / pc.)
39.5437 € *
Available in 5 Days: 897 pcs. - if ordered today
Sensor-actuator connector, 1554539, Phoenix Contact
Data connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, Plug angled M12, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 4 mm - 8 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Reliable signal transmission
- D-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | D | |
| Orientation | angled | |
| Contact connection | IDC connection | |
| Pin number | 4 pole | |
| Product type | plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | nickel-plated/gold-plated | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
