1554513 | Phoenix Contact

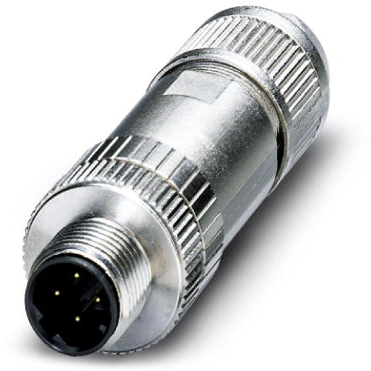

Plug, M12, 4 pole, IDC connection, screw locking, straight, 1554513

Order No.: 61P9332
EAN: 4046356166201
MPN:
1554513
SACC-M12MSD-4Q SH PN
Series: SACC
1554513 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
37.9967 € *
Available in 10 days: 16 pcs. - if ordered today
Total Price:
38.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.9967 €

Sensor-actuator connector, 1554513, Phoenix Contact

Data connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, plug straight M12, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 4 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Assembly cable assembly
contact surface nickel-plated/gold-plated
Degree of protection (IP) IP67
Pin number 4 pole
Type of locking screw locking
Coding D
Orientation straight
Product type plug
Thread size M12
Contact connection IDC connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
