1552269 | Phoenix Contact

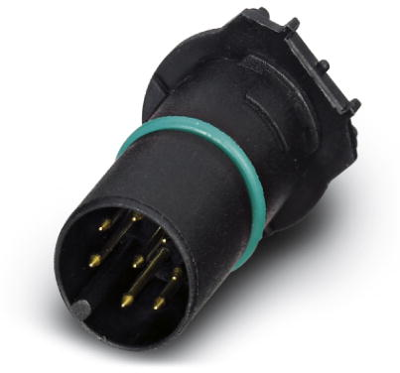

Plug, M12, 8 pole, solder connection, screw locking, straight, 1552269

Order No.: 61P8393
EAN: 4046356162104
MPN:
1552269
SACC-CI-M12MS-8CON-L180 THR
Series: SACC
1552269 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
6.9853 € *
Available in 10 days: 180 pcs. - if ordered today
Total Price:
6.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9853 €

Sensor-actuator connector, 1552269, Phoenix Contact

Sensor/actuator flush-type plug, 8-pole, with straight THR solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Filter Property Value
Orientation straight
Assembly PCB mounting
Pin number 8 pole
Contact connection solder connection
Product type plug
Degree of protection (IP) IP67
Type of locking screw locking
Coding A
Thread size M12
contact surface gold-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
