1552188 | Phoenix Contact
Plug, M12, 5 pole, solder connection, SPEEDCON locking, straight, 1552188
Unit Price (€ / pc.)
8.9964 € *
Standard delivery time from the manufacturer is: 6 Weeks
Sensor-actuator connector, 1552188, Phoenix Contact

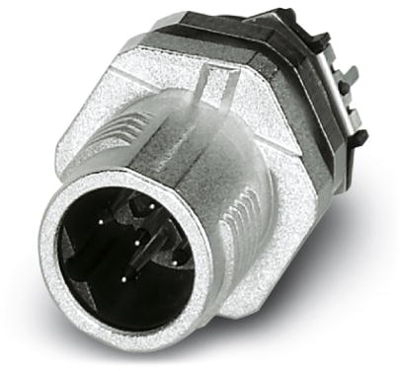

Sensor/actuator flush-type plug, 5-pole, M12 SPEEDCON, rear/screw mounting with M12 thread, with straight THR solder connection.
Features
- Without status display
- B-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Type of locking | SPEEDCON locking | |
| Contact connection | solder connection | |
| Product type | plug | |
| Coding | B | |
| Assembly | rear/screw mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
