1551875 | Phoenix Contact
Panel plug, M12, 4 pole, strand connection, SPEEDCON locking, straight, 1551875
Unit Price (€ / pc.)
16.6481 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
16.65 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6481 €
10 pcs.
14.6370 €
50 pcs.
13.6374 €
150 pcs.
13.0543 €
500 pcs.
12.3760 €
*incl. VAT plus shipping costs
Subject to prior sale

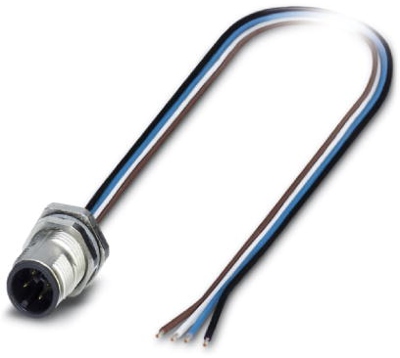

Device connector, 1551875, Phoenix Contact

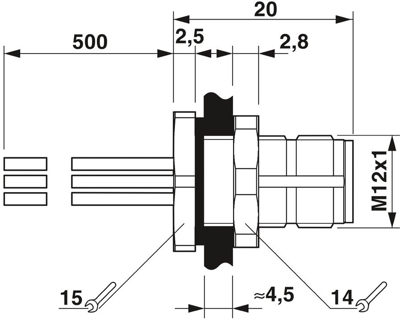

Device connector, Universal, 4-position, Flush-type male connector, Straight, M12-SPEEDCON, Coding: A , On free cable end, Rear mounting, M12 x 1, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Technical specifications
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
