1551671 | Phoenix Contact

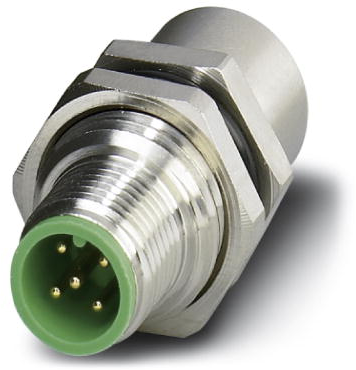

Panel socket, M12, 5 pole, screw locking, straight, 1551671
Unit Price (€ / pc.)
39.1034 € *
Available in 5 Days: 1,663 pcs. - if ordered today
Sensor-actuator connector, 1551671, Phoenix Contact
Sensor/actuator control cabinet feed-through, male to female, 5-pole, M12, shielded, bipolar/screw mounting with M16 thread.
Features
- Degree of protection: IP67
- Pollution degree: 2
- Overvoltage category: II
- A-coded
- Contact material: CuZn
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Assembly | screw mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
