1543931 | Phoenix Contact

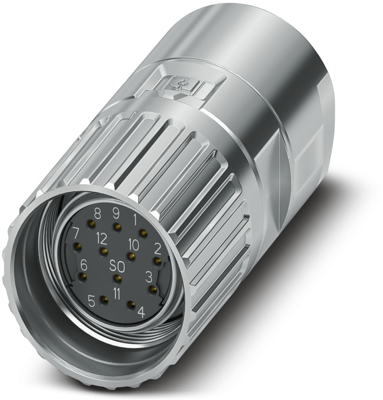

Jack, M23, 12 pole, solder connection, screw locking, straight, 1543931

Order No.: 64P5960
EAN: 4067923016736
MPN:
1543931
Series: M23 PRO
1543931 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
21.4200 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
21.42 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4200 €
10 pcs.
19.9682 €
25 pcs.
18.6949 €
50 pcs.
17.5882 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1543931, Phoenix Contact

M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 12, Drehsinn: Gegenlauf, contact connection type: Socket, Lötanschluss, cable diameter range: 9 mm - 15 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • Easy, cost-effective cable assembly: uniform shielding of M17 to M40
  • Reliable under the harshest conditions: cable connectors with vibration brake
Technical specifications
Pin number 12 pole
Type of locking screw locking
Contact connection solder connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP66/IP68/IP69K
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
