1543676 | Phoenix Contact
Panel socket, M12, 5 pole, straight, 1543676
Unit Price (€ / pc.)
25.3589 € *
Available in 10 days: 18 pcs. - if ordered today

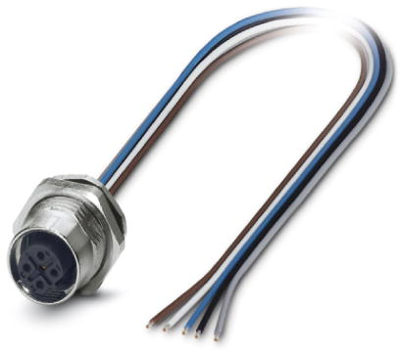

Sensor-actuator connector, 1543676, Phoenix Contact
Sensor/actuator flush-type socket, 5-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Fast locking system
- Pollution degree: 3
- Overvoltage category: III
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Orientation | straight | |
| Additional parts | equipped | |
| Product type | panel socket | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Version | cable 0.5 m |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
