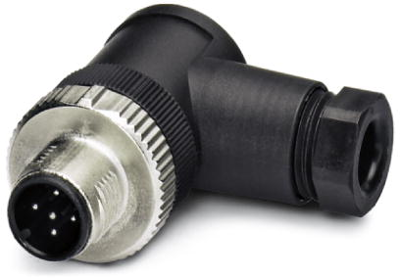

1542994 | Phoenix Contact

Plug, M12, 5 pole, screw connection, SPEEDCON locking, angled, 1542994

Order No.: 61P9392
EAN: 4046356097642
MPN:
1542994
SACC-MR-5CON-PG 7-M SCO
Series: SACC
1542994 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.7036 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.7036 €

Sensor-actuator connector, 1542994, Phoenix Contact

Connector, Universal, 5-position, Plug angled M12 SPEEDCON, Screw connection, knurl material: Nickel-plated brass, cable gland Pg7, external cable diameter 4 mm - 6 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Pin number 5 pole
Type of locking SPEEDCON locking
Contact connection screw connection
Product type plug
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
Thread size M12
contact surface CuSnZn
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
