1542761 | Phoenix Contact

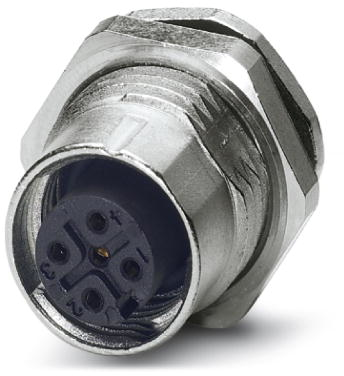

Panel socket, M12, 5 pole, solder connection, SPEEDCON locking, straight, 1542761

Order No.: 61P8572
EAN: 4046356097772
MPN:
1542761
SACC-DSI-FS-5CON-L180 SCO
Series: SACC
1542761 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
11.3883 € *
Available: 5 pcs.
Total Price:
11.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.3883 €

Sensor-actuator connector, 1542761, Phoenix Contact

Sensor/actuator flush-type socket, 5-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with straight solder connection.

Features

  • Easy PCB assembly
  • A-coded
  • Pollution degree: 3
  • Fast locking system
  • Overvoltage category: II

Applications

  • For signal transmission
  • For data transimission
  • For power transimission
Technical specifications
Filter Property Value
Thread size M12
Pin number 5 pole
Orientation straight
Degree of protection (IP) IP65/IP67
Type of locking SPEEDCON locking
Assembly rear/screw mounting
Contact connection solder connection
contact surface gold-plated
Product type panel socket
Coding A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
