1542732 | Phoenix Contact

Panel socket, M12, 8 pole, strand connection, SPEEDCON locking, straight, 1542732

Order No.: 61P8588
EAN: 4046356097741
MPN:
1542732
SACC-DSI-FS-8CON-PG 9/0,5 SCO
Series: SACC
1542732 Phoenix Contact Sensor-Actuator Connectors Image 1
1542732 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.1776 € *
Available: 1 pcs.
Available in 10 days: 14 pcs. - if ordered today
Total Price:
32.18 € *
Price list
Quantity
Price per unit*
1 pcs.
32.1776 €
5 pcs.
30.2379 €
15 pcs.
29.0836 €
50 pcs.
27.7984 €
150 pcs.
26.6322 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 1542732, Phoenix Contact

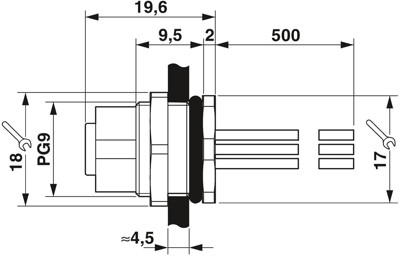

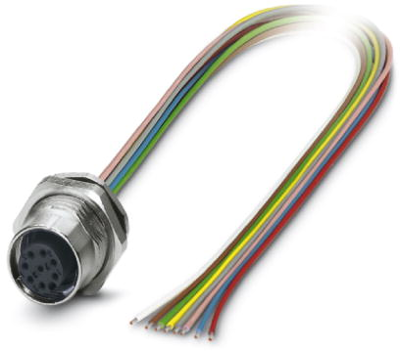

Sensor/actuator flush-type socket, 8-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Fast locking system
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For high transmission safety
Technical specifications
Product type panel socket
Version cable 0.5 m
Pin number 8 pole
Thread size M12
Coding A
Type of locking SPEEDCON locking
Orientation straight
Contact connection strand connection
contact surface gold-plated
Additional parts equipped
Assembly rear mounting
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
