1542729 | Phoenix Contact

Panel socket, M12, 5 pole, strand connection, SPEEDCON locking, straight, 1542729

Order No.: 61P8580
EAN: 4046356097734
MPN:
1542729
SACC-DSI-FS-5CON-PG 9/0,5 SCO
Series: SACC
1542729 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
25.3589 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
25.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.3589 €

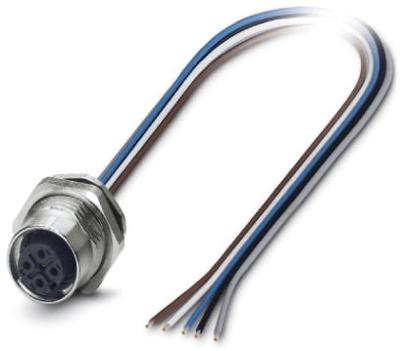

Sensor-actuator connector, 1542729, Phoenix Contact

Sensor/actuator flush-type socket, 5-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.34 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Fast locking system
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For high transmission safety
Technical specifications
Filter Property Value
Product type panel socket
Version cable 0.5 m
Pin number 5 pole
Thread size M12
Coding A
Type of locking SPEEDCON locking
Orientation straight
Contact connection strand connection
contact surface gold-plated
Additional parts equipped
Assembly rear mounting
Degree of protection (IP) IP65/IP67
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
