1542677 | Phoenix Contact

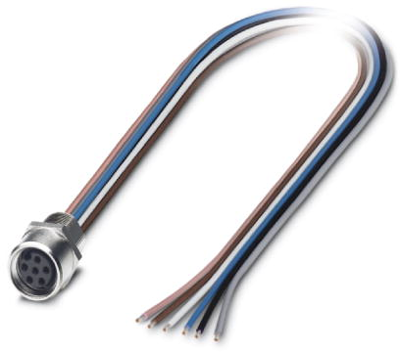

Panel socket, M8, 6 pole, strand connection, straight, 1542677
Unit Price (€ / pc.)
31.8087 € *
Available in 5 Days: 1,021 pcs. - if ordered today
Sensor-actuator connector, 1542677, Phoenix Contact
Flush-type connector, 6-position, Socket, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.14 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | A | |
| Assembly | front mounting | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
