1530618 | Phoenix Contact
Panel socket, M5, 4 pole, strand connection, straight, 1530618
Unit Price (€ / pc.)
32.6179 € *
Available in 10 days: 72 pcs. - if ordered today

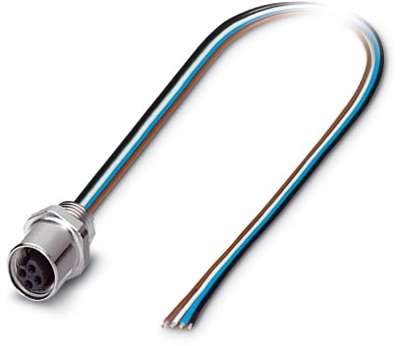

Sensor-actuator connector, 1530618, Phoenix Contact
Sensor/actuator flush-type socket, 4-pole, M5, prewall/screw mounting, with M5 thread, with 0.5 m TPE litz wire, 4x0.14 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Contact connection | strand connection | |
| Assembly | front mounting | |
| Version | cable 0.5 m | |
| Product type | panel socket | |
| Coding | A | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M5 | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
