1530605 | Phoenix Contact
Panel socket, M5, 3 pole, strand connection, straight, 1530605
Unit Price (€ / pc.)
30.4878 € *
Standard delivery time from the manufacturer is: 10 Weeks

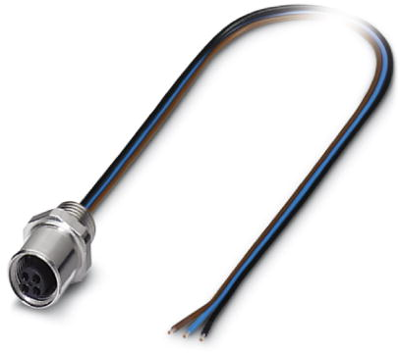

Sensor-actuator connector, 1530605, Phoenix Contact
Sensor/actuator flush-type socket, 3-pole, M5, prewall/screw mounting, with M5 thread, with 0.5 m TPE litz wire, 3x0.14 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M5 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
