1521601 | Phoenix Contact

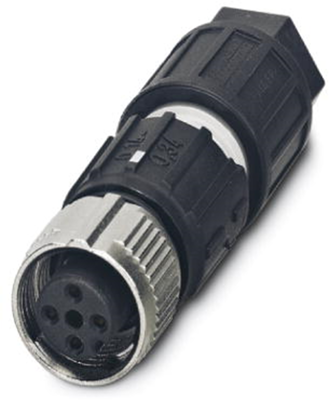

Jack, M12, 4 pole, IDC connection, screw locking, straight, 1521601

Order No.: 67F6056
EAN: 4017918953041
MPN:
1521601
SACC-FS-4QO-0,75-M SCO
Series: SACC
1521601 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
19.0757 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.0757 €

Socket, 1521601, Phoenix Contact

Connector, Universal, 4-position, Socket straight M12 SPEEDCON, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm - 8 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • Fast locking system
  • A-coded
  • Overvoltage category: III
  • Pollution degree: 3
  • Contact material: CuSn
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Coding A
Type of locking screw locking
Thread size M12
Degree of protection (IP) IP65/IP67
contact surface nickel-plated/gold-plated
Orientation straight
Pin number 4 pole
Assembly cable assembly
Contact connection IDC connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
