1521504 | Phoenix Contact
Plug, 5 pole, screw connection, screw locking, angled, 1521504
Unit Price (€ / pc.)
58.9764 € *
Available: 0 pcs.
Available in 10 days: 55 pcs.
Leadtime: 2 Weeks **

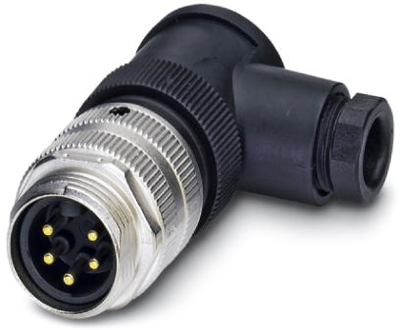

Sensor-actuator connector, 1521504, Phoenix Contact
Connector, Universal, 5-position, Plug angled 7/8"-UNF, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- A-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Pin number | 5 pole | |
| Version | plug | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
