1521465 | Phoenix Contact

Plug, 3 pole, screw connection, screw locking, angled, 1521465

Order No.: 61P9376
EAN: 4017918949686
MPN:
1521465
SACC-MINMR-3CON-PG 9
Series: SACC
1521465 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
51.2771 € *
Available in 10 days: 17 pcs. - if ordered today
Total Price:
51.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.2771 €

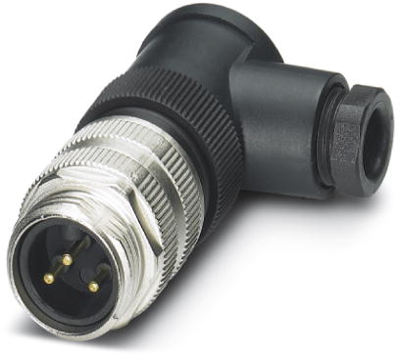

Sensor-actuator connector, 1521465, Phoenix Contact

Connector, Universal, 3-position, Plug angled 7/8"-UNF, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67
Technical specifications
Pin number 3 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
