1521339 | Phoenix Contact

Plug, 4 pole, screw connection, screw locking, straight, 1521339

Order No.: 61P9384
EAN: 4017918949563
MPN:
1521339
SACC-MINMS-4CON-PG13
Series: SACC
1521339 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
50.575 € *
Available in 10 days: 98 pcs. - if ordered today
Total Price:
50.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
50.575 €

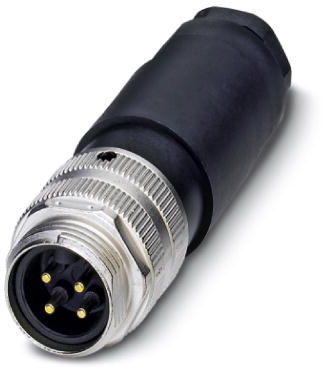

Sensor-actuator connector, 1521339, Phoenix Contact

Connector, Universal, 4-position, plug straight 7/8"-UNF, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg13,5, external cable diameter 10 mm - 12 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67
Technical specifications
Pin number 4 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
