1521313 | Phoenix Contact

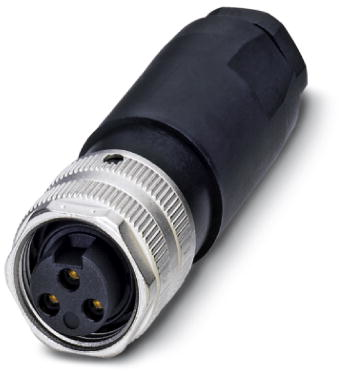

Jack, 3 pole, screw connection, screw locking, straight, 1521313

Order No.: 61P9367
EAN: 4017918949549
MPN:
1521313
SACC-MINFS-3CON-PG13
Series: SACC
1521313 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
46.3029 € *
Available in 10 days: 82 pcs. - if ordered today
Total Price:
46.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.3029 €

Sensor-actuator connector, 1521313, Phoenix Contact

Connector, Universal, 3-position, Socket straight 7/8"-UNF, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg13,5, external cable diameter 10 mm - 12 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67
Technical specifications
Coding A
Type of locking screw locking
Degree of protection (IP) IP67
contact surface gold-plated
Orientation straight
Pin number 3 pole
Assembly cable assembly
Contact connection screw connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
