1521258 | Phoenix Contact

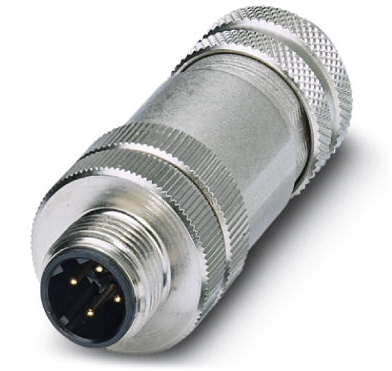

Plug, M12, 4 pole, screw connection, screw locking, straight, 1521258
Unit Price (€ / pc.)
37.6159 € *
Available: 0 pcs.
Available in 10 days: 318 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1521258, Phoenix Contact
Data connector, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, shielded, plug straight M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm - 6 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Reliable signal transmission
- D-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | D | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Version | plug | |
| Orientation | straight | |
| Thread size | M12 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
