1507052 | Phoenix Contact

Plug, M12, 4 pole, screw connection, screw locking, straight, 1507052

Order No.: 61P9285
EAN: 4017918888381
MPN:
1507052
SACC-M12MS-4CON-PG11-DUO-M
Series: SACC
1507052 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
27.8460 € *
Available in 10 days: 109 pcs. - if ordered today
Total Price:
27.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.8460 €

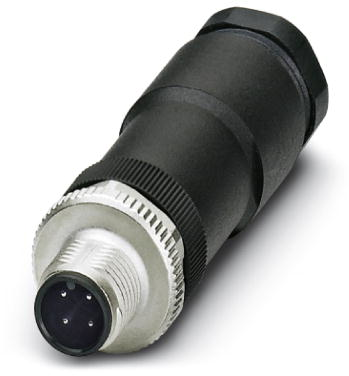

Sensor-actuator connector, 1507052, Phoenix Contact

Connector, Universal, 4-position, plug straight M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg11-DUO, external cable diameter 2.1 mm - 3 mm / 4 mm - 5.2 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Pin number 4 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface CuSnZn
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
