1506891 | Phoenix Contact

Jack, M8, 4 pole, screw connection, screw locking, straight, 1506891

Order No.: 67F5956
EAN: 4017918881207
MPN:
1506891
SACC-M8FS-4CON-M-SW
Series: SACC

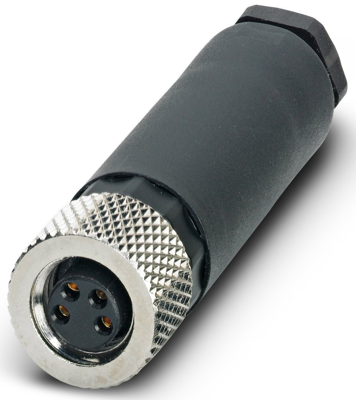

1506891 Phoenix Contact Sensor-Actuator Connectors Image 1
1506891 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.5838 € *
Available: 4 pcs.
Available in 5 Days: 6,183 pcs. - if ordered today
Total Price:
28.58 € *
Price list
Quantity
Price per unit*
1 pcs.
28.5838 €
10 pcs.
26.0015 €
25 pcs.
23.3954 €
50 pcs.
20.5989 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket, 1506891, Phoenix Contact

Connector, Universal, 4-position, Socket straight M8, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • A-coded
  • Overvoltage category: III
  • Pollution degree: 3
  • Contact material: CuZn
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Product type jack
Degree of protection (IP) IP67
Orientation straight
Pin number 4 pole
Coding A
Additional parts equipped
Contact connection screw connection
contact surface gold-plated
Assembly cable assembly
Thread size M8
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
