1506888 | Phoenix Contact

Jack, M8, 3 pole, screw connection, screw locking, straight, 1506888

Order No.: 67F5952
EAN: 4017918881214
MPN:
1506888
SACC-M8FS-3CON-M-SW
Series: SACC

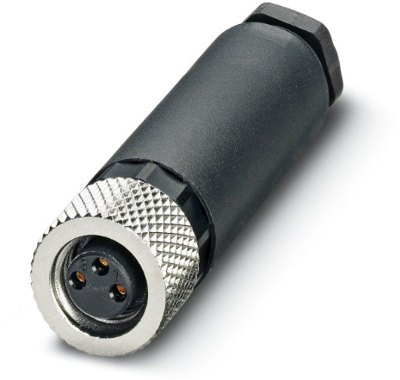

1506888 Phoenix Contact Sensor-Actuator Connectors Image 1

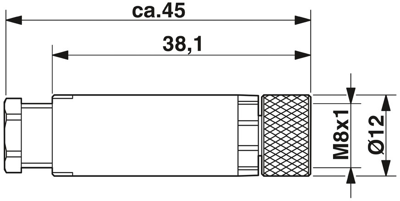

1506888 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.4438 € *
Available in 5 Days: 5,117 pcs. - if ordered today
Total Price:
21.44 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4438 €
10 pcs.
19.3018 €
50 pcs.
17.3502 €
100 pcs.
15.6485 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket, 1506888, Phoenix Contact

Connector, Universal, 3-position, Socket straight M8, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • A-coded
  • Overvoltage category: III
  • Pollution degree: 3
  • Contact material: CuZn
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Pin number 3 pole
Degree of protection (IP) IP67
Assembly cable assembly
Additional parts equipped
Coding A
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection screw connection
Thread size M8
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
