1501540 | Phoenix Contact

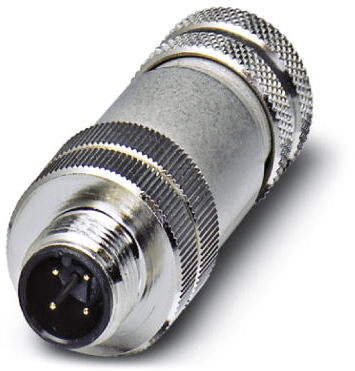

Plug, M12, 4 pole, screw connection, screw locking, straight, 1501540

Order No.: 61P9283
EAN: 4017918614393
MPN:
1501540
SACC-M12MS-4CON-PG 9-SH
Series: SACC
1501540 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
37.6159 € *
Available in 10 days: 380 pcs. - if ordered today
Total Price:
37.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.6159 €

Sensor-actuator connector, 1501540, Phoenix Contact

Connector, Universal, 4-position, shielded, plug straight M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Type of locking screw locking
contact surface gold-plated
Orientation straight
Assembly cable assembly
Pin number 4 pole
Product type plug
Thread size M12
Coding A
Degree of protection (IP) IP67
Contact connection screw connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
