1500347 | Phoenix Contact

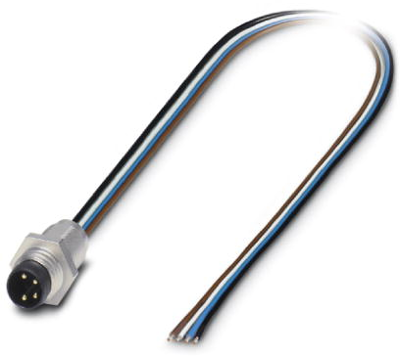

Panel plug, M8, 4 pole, strand connection, straight, 1500347
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
17.1360 € *
Available in 5 Days: 5,822 pcs. - if ordered today
Total Price:
17.14 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1360 €
10 pcs.
15.0892 €
25 pcs.
14.0420 €
50 pcs.
13.4351 €
100 pcs.
12.7568 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1500347, Phoenix Contact
Flush-type connector, 4-position, Plug, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 4 pole | |
| Thread size | M8 | |
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
