1500334 | Phoenix Contact

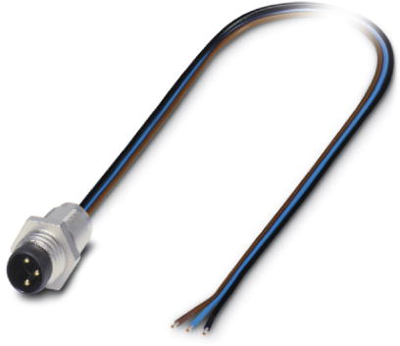

Panel plug, M8, 3 pole, strand connection, straight, 1500334

Order No.: 61P8976
EAN: 4017918589097
MPN:
1500334
SACC-E-M 8MS-3CON-M8/0,5
Series: SACC
1500334 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
15.3510 € *
Available: 1 pcs.
Available in 10 days: 1,781 pcs. - if ordered today
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3510 €
10 pcs.
13.4946 €
50 pcs.
12.5664 €
150 pcs.
12.0309 €
500 pcs.
11.4002 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 1500334, Phoenix Contact

Flush-type connector, 3-position, Plug, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Pin number 3 pole
Degree of protection (IP) IP67
Assembly front mounting
Orientation straight
Coding A
Version cable 0.5 m
Product type panel plug
Additional parts equipped
Contact connection strand connection
Thread size M8
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
