1458839 | Phoenix Contact
Panel socket, M12, 5 pole, strand connection, SPEEDCON locking, straight, 1458839
Unit Price (€ / pc.)
12.2927 € *
Available in 10 days: 3 pcs. - if ordered today

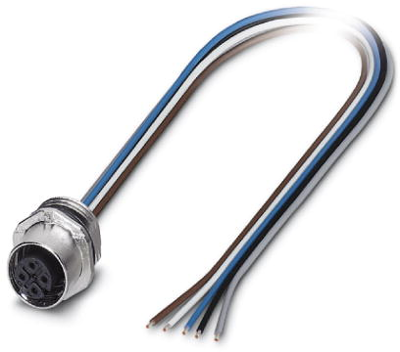

Sensor-actuator connector, 1458839, Phoenix Contact
Flush-type connector, Universal, 5-position, Socket, straight, M12-SPEEDCON, Front mounting, M16 x 1.5, Individual wires, cable length: 0.7 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- Fast locking system
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Product type | panel socket | |
| Version | cable 0.7 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
