1458813 | Phoenix Contact

Panel plug, M12, 5 pole, strand connection, straight, 1458813

Order No.: 61P8935
EAN: 4046356649292
MPN:
1458813
SACC-EC-M12MS-5CON-PG9/0,06 SN
Series: SACC
1458813 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
17.0765 € *
Available in 10 days: 4 pcs. - if ordered today
Total Price:
1,707.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
17.0765 €

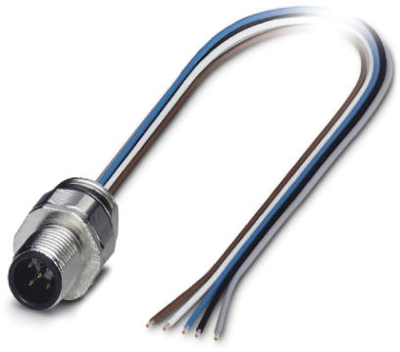

Sensor-actuator connector, 1458813, Phoenix Contact

Sensor/Actuator flush-type plug, 5-pole, M12, front/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.34 mm².

Features

  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Pin number 5 pole
Contact connection strand connection
Assembly front mounting
Version cable 0.06 m
Product type panel plug
Coding A
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface nickel-plated/gold-plated
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
