1457571 | Phoenix Contact

Plug, M12, 12 pole, solder connection, screw locking, straight, 1457571

Order No.: 61P8359
EAN: 4046356617321
MPN:
1457571
SACC-CI-M12MS- 12CON-TOR 32
Series: SACC
1457571 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
16.2078 € *
Available in 10 days: 400 pcs. - if ordered today
Total Price:
1,620.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
16.2078 €

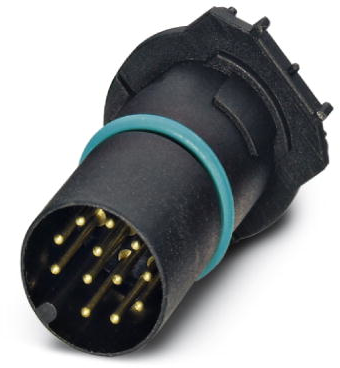

Sensor-actuator connector, 1457571, Phoenix Contact

Sensor/actuator flush-type plug, 12-pole, with straight THR solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Filter Property Value
contact surface nickel-plated/gold-plated
Contact connection solder connection
Orientation straight
Coding A
Assembly PCB mounting
Degree of protection (IP) IP67
Product type plug
Thread size M12
Type of locking screw locking
Pin number 12 pole
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
