Plug, M12, 5 pole, solder pins, SPEEDCON locking, straight, 1456572
Unit Price (€ / pc.)
12.2570 € *
Standard delivery time from the manufacturer is: 8 Weeks
Sensor-actuator connector, 1456572, Phoenix Contact

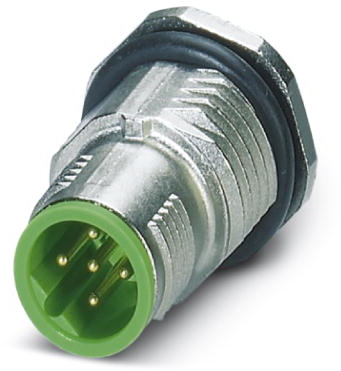

Sensor/actuator flush-type plug, with green contact carrier, 5-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- Shielded
- B-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Pin number | 5 pole | |
| Type of locking | SPEEDCON locking | |
| Contact connection | solder pins | |
| Product type | plug | |
| Coding | B | |
| Assembly | rear/screw mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
