1456556 | Phoenix Contact
Plug, M12, 4 pole, solder pins, SPEEDCON locking, straight, 1456556
Unit Price (€ / pc.)
11.8286 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Sensor-actuator connector, 1456556, Phoenix Contact

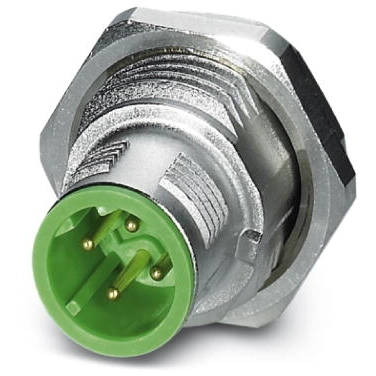

Bus system flush-type plug, with green contact carrier, 4-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- D-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Type of locking | SPEEDCON locking | |
| contact surface | nickel-plated/gold-plated | |
| Coding | D | |
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | rear/screw mounting | |
| Contact connection | solder pins | |
| Pin number | 4 pole | |
| Version | plug | |
| Orientation | straight | |
| Thread size | M12 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
