1456530 | Phoenix Contact
Plug, M12, 8 pole, solder pins, screw locking, straight, 1456530
Unit Price (€ / pc.)
17.0408 € *
Available in 10 days: 580 pcs. - if ordered today

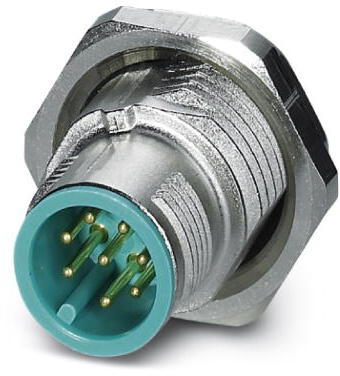

Sensor-actuator connector, 1456530, Phoenix Contact
Sensor/actuator flush-type plug, with water blue contact carrier, 8-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Shielded
- A-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Contact connection | solder pins | |
| Assembly | rear/screw mounting | |
| Product type | plug | |
| Coding | A | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
