1456527 | Phoenix Contact

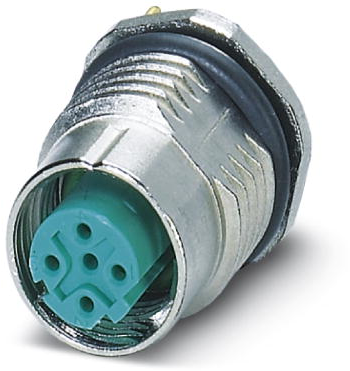

Panel socket, M12, 4 pole, solder pins, screw locking, straight, 1456527
Unit Price (€ / pc.)
12.3046 € *
Available in 10 days: 20 pcs. - if ordered today
Sensor-actuator connector, 1456527, Phoenix Contact
Bus system flush-type socket, with water blue contact carrier, 4-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- D-coded
- Pollution degree: 3
- Overvoltage category: I
- Fast locking system
- Degree of protection: IP67
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Thread size | M12 | |
| Pin number | 4 pole | |
| Assembly | rear/screw mounting | |
| Product type | panel socket | |
| Type of locking | screw locking | |
| Contact connection | solder pins | |
| Coding | D | |
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
