1456501 | Phoenix Contact
Panel socket, M12, 5 pole, solder pins, screw locking, straight, 1456501
Unit Price (€ / pc.)
12.7330 € *
Standard delivery time from the manufacturer is: 8 Weeks

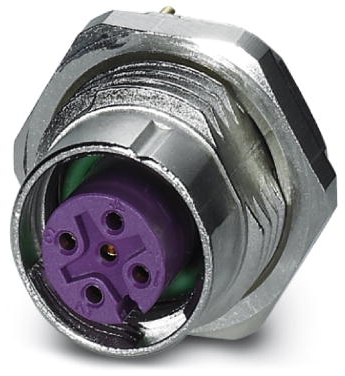

Sensor-actuator connector, 1456501, Phoenix Contact
Sensor/actuator flush-type socket, with violet contact carrier, 5-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- A-coded
- Pollution degree: 3
- Overvoltage category: I
- Degree of protection: IP67
Applications
- For high transmission safety
Technical specifications
| Contact connection | solder pins | |
| Coding | A | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| Product type | panel socket | |
| Thread size | M12 | |
| Assembly | rear/screw mounting |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
