1456475 | Phoenix Contact
Plug, M12, 5 pole, solder pins, screw locking, straight, 1456475
Unit Price (€ / pc.)
12.2570 € *
Available: 0 pcs.
Available in 10 days: 15 pcs.
Leadtime: 2 Weeks **

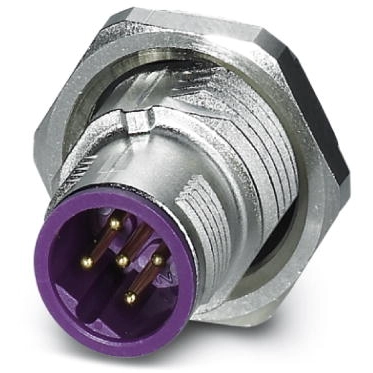

Sensor-actuator connector, 1456475, Phoenix Contact
Sensor/actuator flush-type plug, with violet contact carrier, 5-pole, M12 SPEEDCON, shielded, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- Shielded
- B-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Version | Stecker | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | Lötstifte | |
| contact surface | vergoldet | |
| Assembly | Rück-/Schraubmontage | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
