1456433 | Phoenix Contact

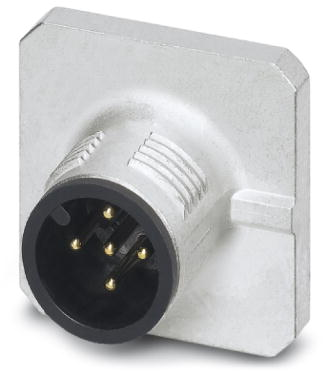

Plug, M12, 5 pole, solder pins, screw locking, straight, 1456433

Order No.: 61P9444
EAN: 4046356617048
MPN:
1456433
SACC-SQ-M12MS-5CON-20-L180
Series: SACC
1456433 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
19.9920 € *
Available in 10 days: 9 pcs. - if ordered today
Total Price:
19.99 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9920 €
10 pcs.
18.3855 €
50 pcs.
16.9218 €
100 pcs.
15.3986 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 1456433, Phoenix Contact

Sensor/actuator flush-type plug, 5-pole socket, M12, front/square flange mounting, wave soldering.

Features

  • Easy PCB assembly
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: III
  • Degree of protection: IP67

Applications

  • For signal transmission
  • For power transimission
Technical specifications
Pin number 5 pole
Type of locking screw locking
Contact connection solder pins
Product type plug
Coding A
Assembly front wall/square flange mounting
Orientation straight
Degree of protection (IP) IP20
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
