1456394 | Phoenix Contact

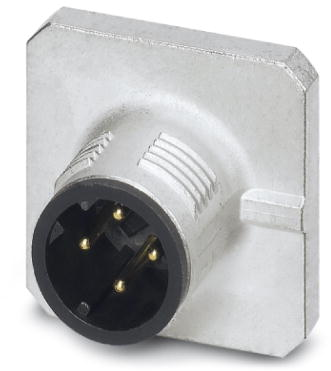

Plug, M12, 4 pole, solder pins, SPEEDCON locking, straight, 1456394

Order No.: 61P9453
EAN: 4046356617000
MPN:
1456394
SACC-SQ-M12MSD-4CON-20-L180
Series: SACC
1456394 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
19.0400 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.04 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0400 €
10 pcs.
17.5168 €
50 pcs.
16.1126 €
100 pcs.
14.6608 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 1456394, Phoenix Contact

Sensor/actuator flush-type plug, 4-pole socket, M12, front/square flange mounting, wave soldering.

Features

  • Easy PCB assembly
  • Fast locking system
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For signal transmission
  • For power transimission
Technical specifications
Pin number 4 pole
Type of locking SPEEDCON locking
Contact connection solder pins
Product type plug
Coding D
Assembly front wall/square flange mounting
Orientation straight
Degree of protection (IP) IP20
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
